forklifts

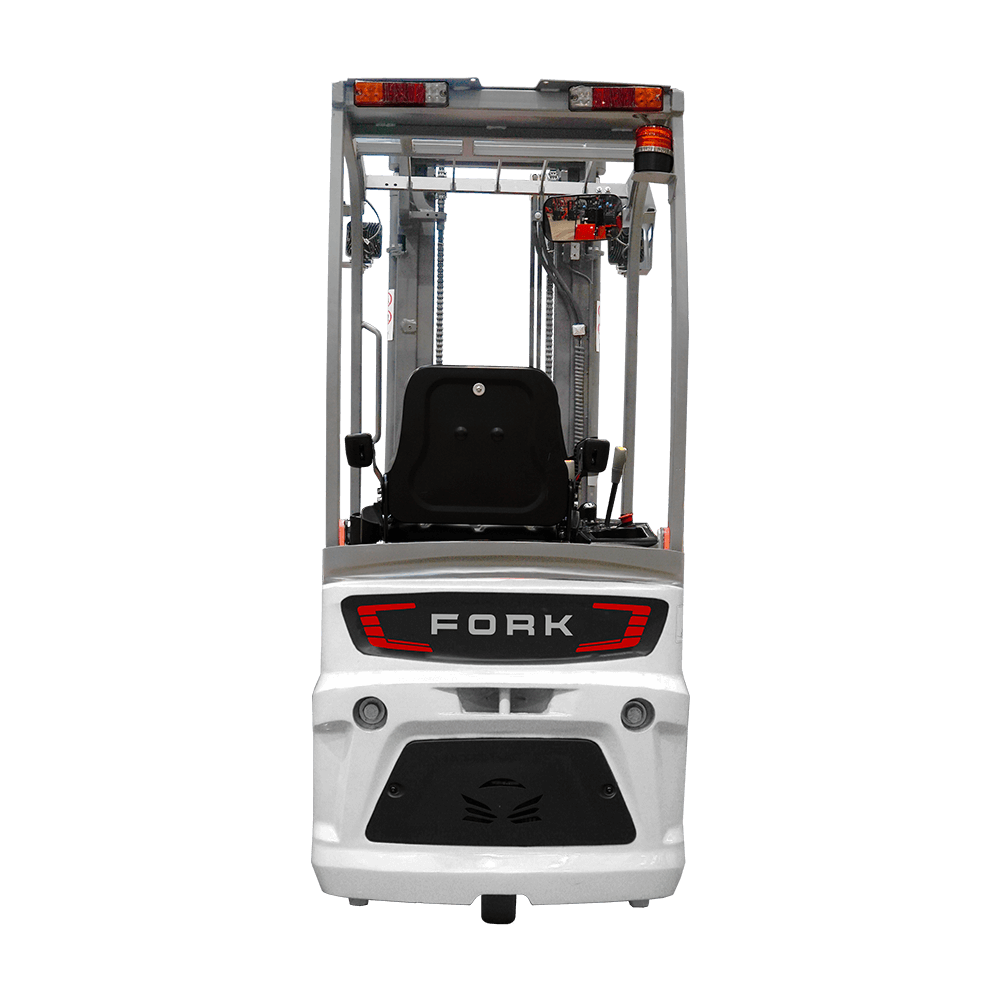

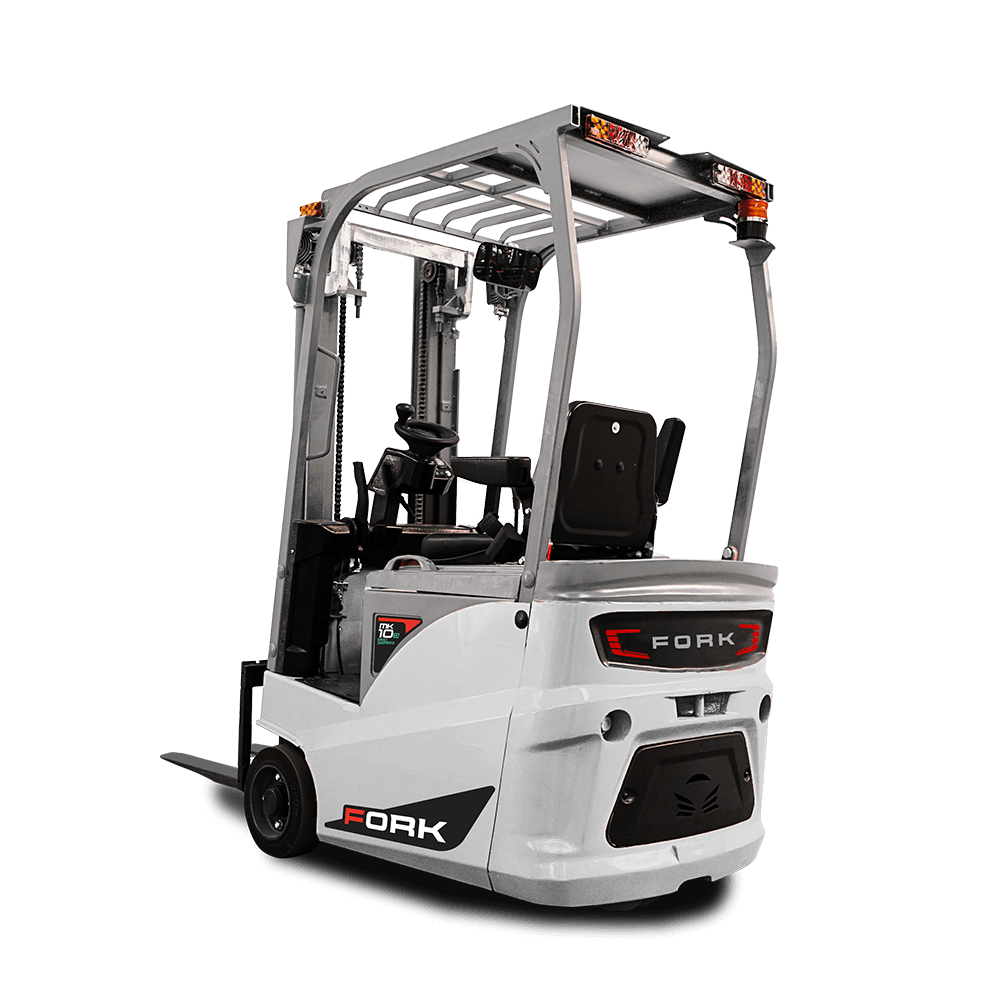

Three-wheel electric forklift MK-10e

Battery type:

Lead-acids

Battery voltage/capacity:

24/420 V/Ah

Capacity:

1000 kg

Centre of gravity distance:

500 mm

Charger:

24/55 V/A

Clearance under mast (laden):

80 mm

Engine power:

2.5 kW

Engine type:

Electric

Fork length:

1150 mm

Fork width:

100 mm

Free lift height:

1411 mm

Ground clearance at the centre of the wheelbase:

90 mm

Lifting height:

5000 mm

Mast extend height:

5865 mm

Mast lower height:

2250 mm

Mast tilt angle:

3 °/5 °

Mast type:

Three-stage telescopic mast with free lift function (Triplex, FFL)

Overall length:

2630 mm

Overall width:

880 mm

Top speed:

9 km/h

Turning radius:

1320 mm

Weight:

1910 kg

Wheel material:

Full rubber

FORK LK series electric loaders

A modern and energy efficient choice for moving and lifting different loads, providing an environmentally friendly alternative to traditional internal combustion engine models. Their powerful lithium-ion batteries provide fast charging, long life and less maintenance, so electric loaders are especially practical for intensive use.

Since these loaders do not produce exhaust gases, they are also safe to use indoors. In addition, electric loaders operate very quietly, which contributes to a better working environment and reduces noise levels in the area. LK series loaders provide excellent manoeuvrability and accuracy, making them suitable for narrow aisles in warehouses or small work areas.

Load capacity

8000 kg

Fork positioning

Electric

Battery

96V / 554Ah Li-ion

Overwhelming slope (with/without cargo)

14% / 14%

Why choose BOM-10e?

Environmentally friendly solution

Electric drive guarantees quieter and greener operation while maintaining high performance and reliability.

CURTIS self-diagnosis display

Intuitive and easy to use for accurate diagnosis and maintenance. Provides easy-to-understand information, making it easier to control and maintain the truck.

Operator comfort

The truck has been designed with the comfort and ergonomics of the operator to ensure maximum efficiency and productivity.

Disc brakes

They provide more efficient braking and longer life, improving safety and reducing wear during operation.
