Electric forklift LK30e-55-PLUS

Battery type:

76.8/350

Capacity:

3000 kg

Centre of gravity distance:

500 mm

Charger:

80/100 V/A

Clearance under mast (laden):

140 mm

Engine power:

12 kW

Engine type:

Electric

Fork length:

1220 mm

Fork width:

122 mm

Free lift height:

1360 mm

Ground clearance at the centre of the wheelbase:

190 mm

Lifting height:

5500 mm

Mast extend height:

6620 mm

Mast lower height:

2505 mm

Mast tilt angle:

3 °/6 °

Mast type:

Three-stage telescopic mast with free lift function (Triplex, FFL)

Overall length:

3995 mm

Overall width:

1228 mm

Top speed:

15 km/h

Turning radius:

2450 mm

Weight:

4100 kg

Wheel material:

Full rubber

Electric loader Battery PLUS

FORK LK series electric loaders

A modern and energy efficient choice for moving and lifting different loads, providing an environmentally friendly alternative to traditional internal combustion engine models. Their powerful lithium-ion batteries provide fast charging, long life and less maintenance, so electric loaders are especially practical for intensive use.

Loader
Loader detail

Since these loaders do not produce exhaust gases, they are safe to use indoors. In addition, electric loaders operate very quietly, improving the working environment and reducing noise levels. LK series loaders provide excellent manoeuvrability and accuracy, making them suitable for narrow aisles and small work areas.

Load capacity

3000 kg

Lifting height

5.5 m

Engine power

18 kW

Why choose LK30e-55-PLUS?

  • Environmentally friendly solution
    Electric drive guarantees quieter and greener operation while maintaining performance.

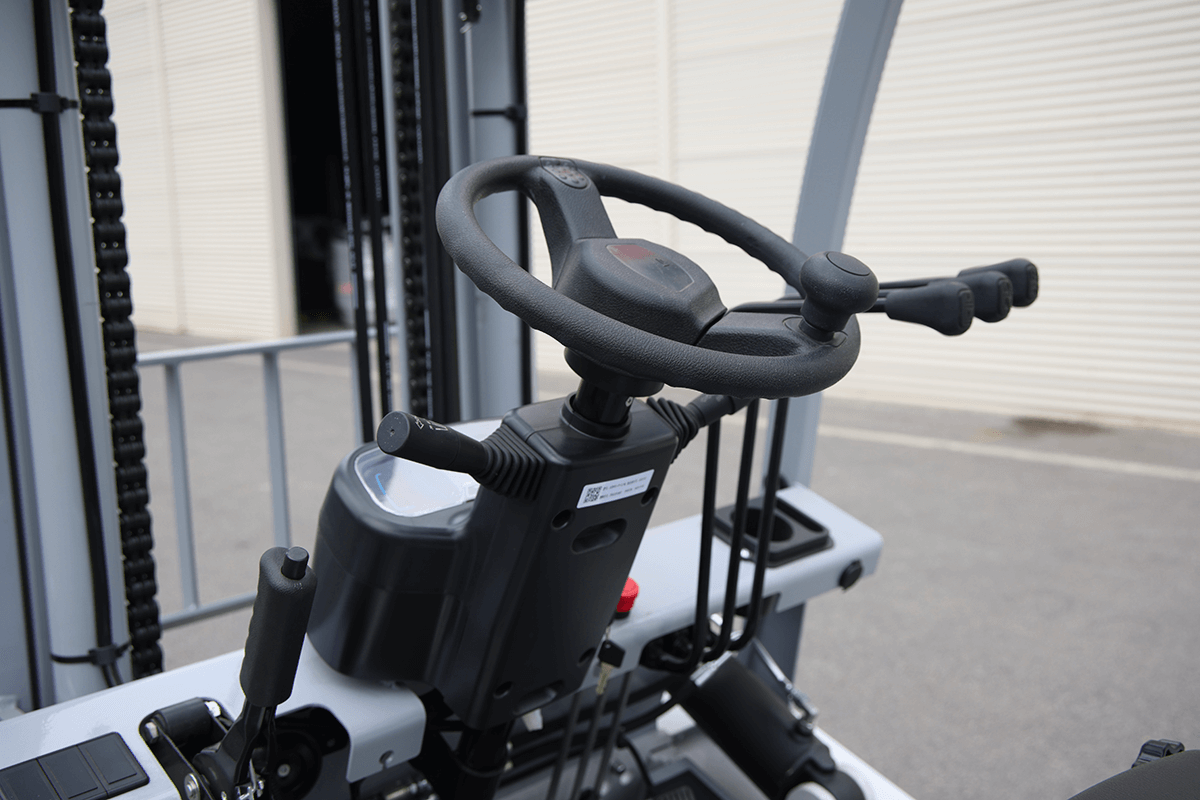

  • CURTIS self-diagnosis display
    Easy to use system for monitoring and maintenance.

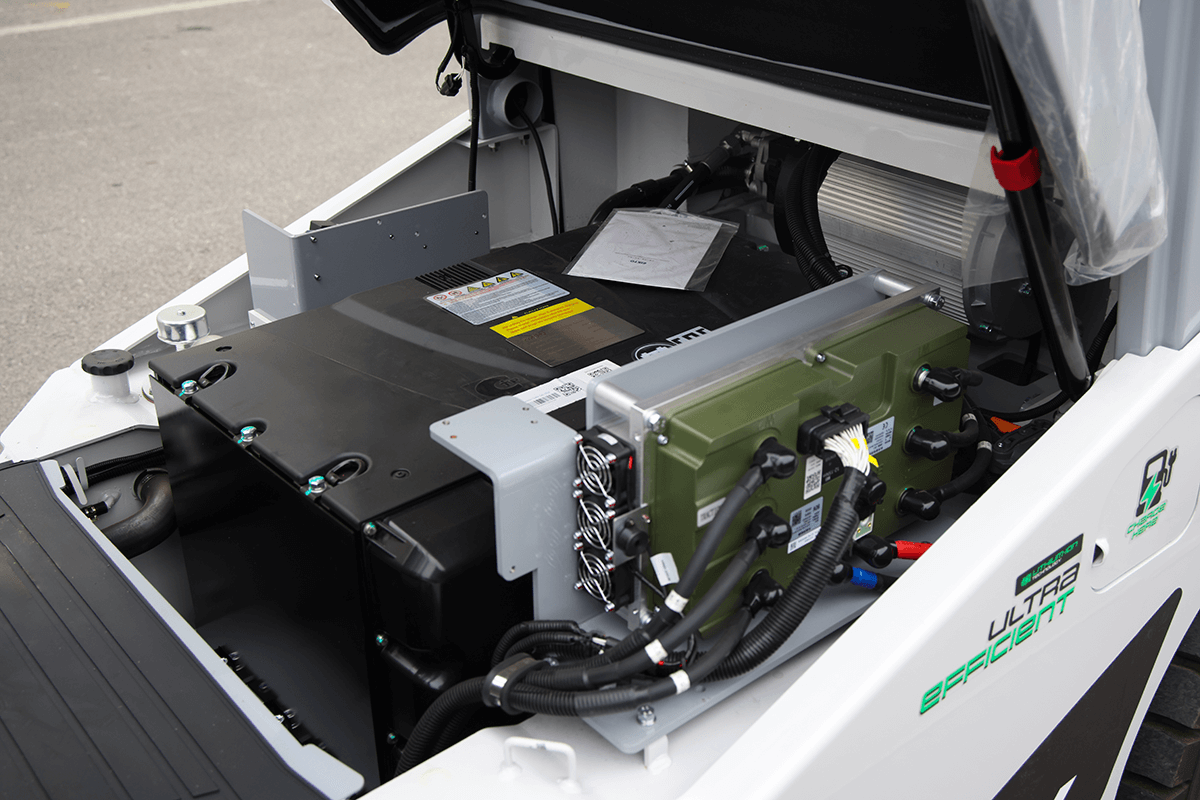

  • Battery location
    Lower center of gravity improves stability.
  • Disc brakes
    More efficient braking and longer lifespan.
