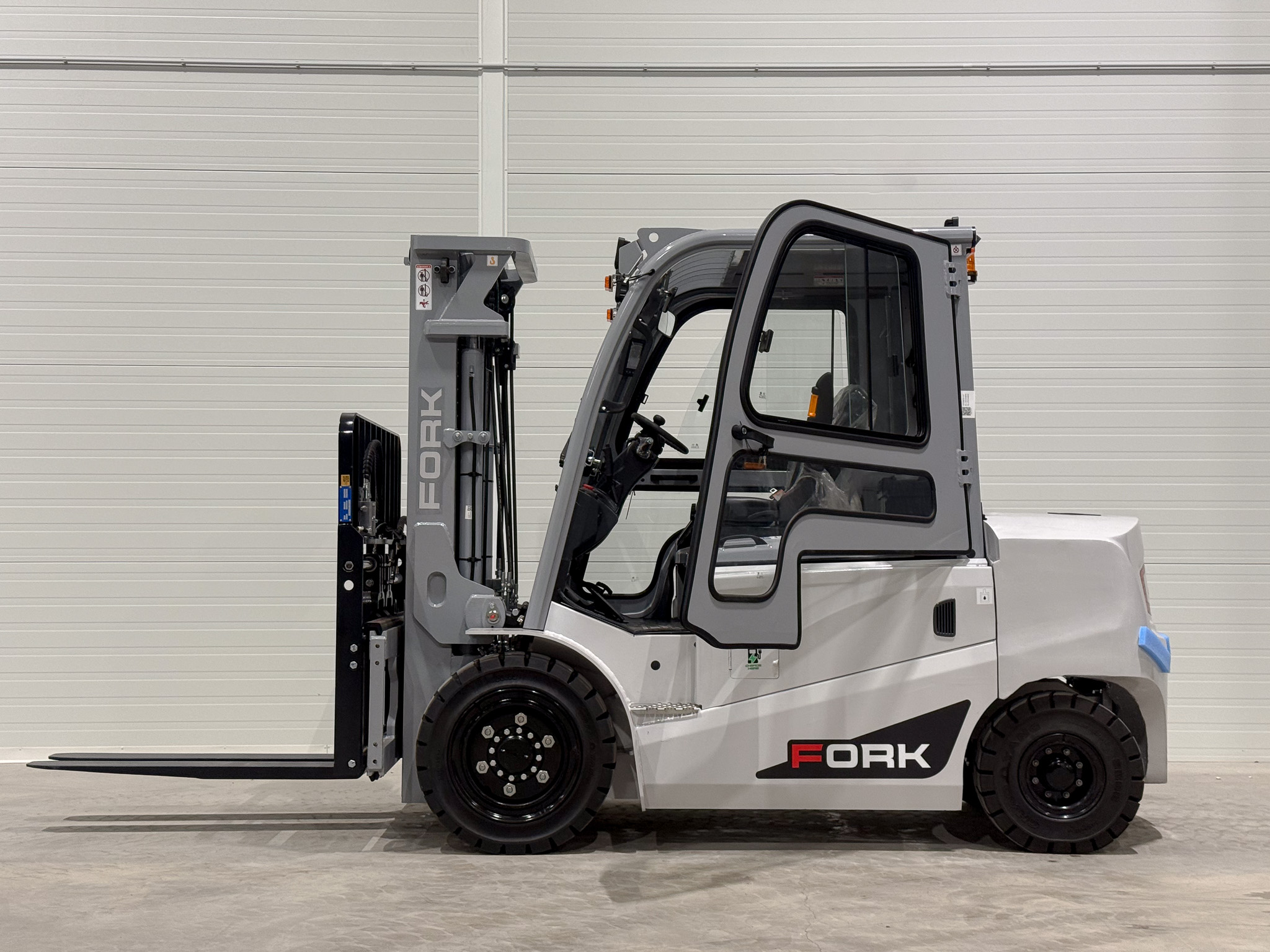

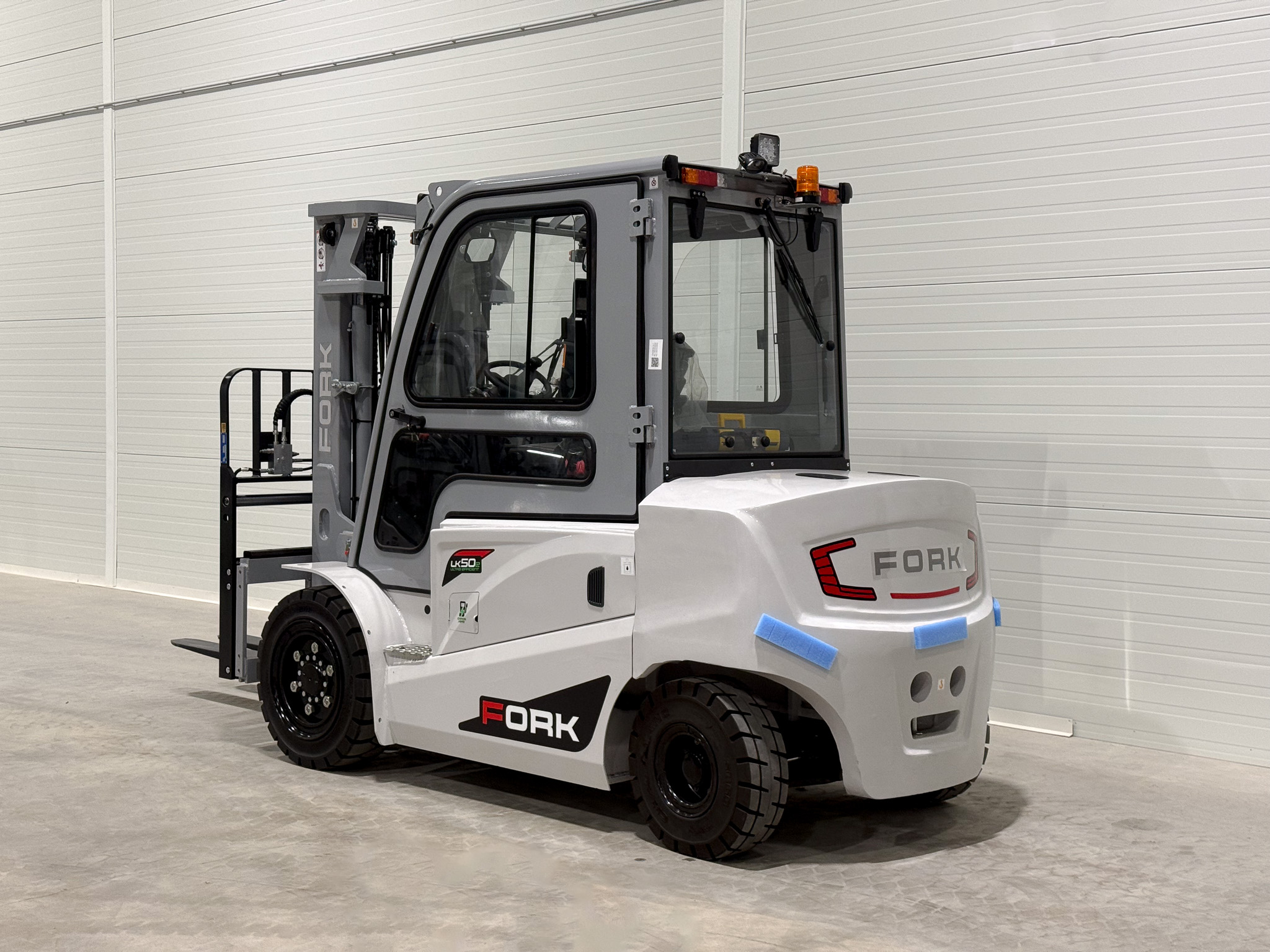

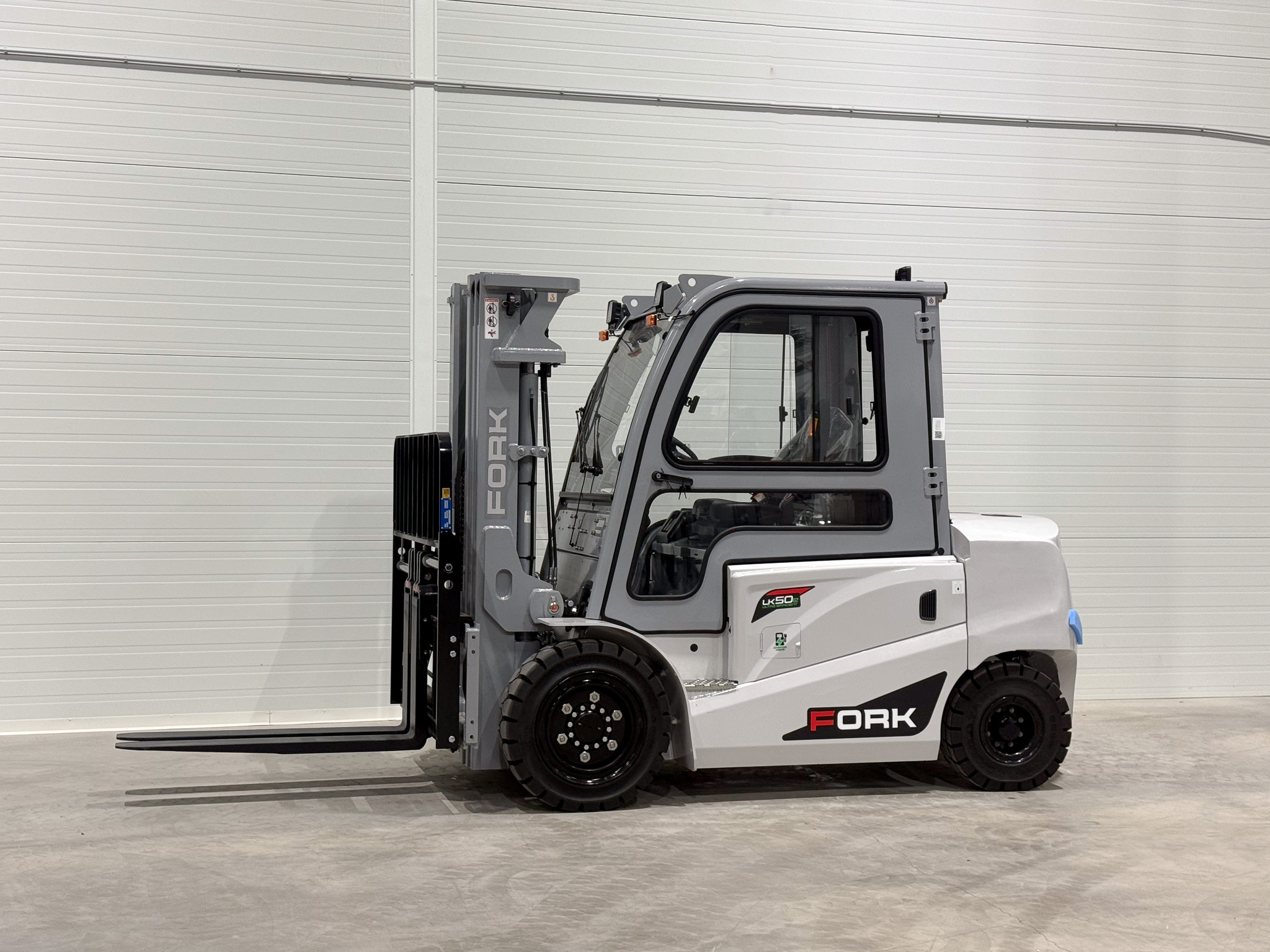

Electric forklift LK50e-30 with cab

Battery type:

Li-Ion

Battery voltage/capacity:

80/412 V/Ah

Capacity:

5000 kg

Centre of gravity distance:

500 mm

Charger:

80/200 V/A

Clearance under mast (laden):

135 mm

Engine power:

20 kW

Engine type:

Electric

Fork length:

1070 mm

Fork width:

150 mm

Free lift height:

150 mm

Ground clearance at the centre of the wheelbase:

165 mm

Lifting height:

3000 mm

Mast extend height:

4117 mm

Mast lower height:

2260 mm

Mast tilt angle:

6 °/10 °

Mast type:

Two-stage telescopic mast

Overall length:

4110 mm

Overall width:

1500 mm

Top speed:

15 km/h

Turning radius:

2690 mm

Weight:

6950 kg

Wheel material:

Full rubber

FORK LK series electric loaders

A modern and energy efficient choice for moving and lifting different loads, providing an environmentally friendly alternative to traditional internal combustion engine models. Their powerful lithium-ion batteries provide fast charging, long life and less maintenance, so electric loaders are especially practical for intensive use.

Since these loaders do not produce exhaust gases, they are also safe to use indoors. In addition, electric loaders operate very quietly, which contributes to a better working environment and reduces noise levels in the area. LK series loaders provide excellent manoeuvrability and accuracy, making them suitable for narrow aisles in warehouses or small work areas.


LOAD CAPACITY
5000 kg
fork positioning
Electric
BATTERY
80V/412Ah Li-ion
Overwhelming slope
(WITH/WITHOUT CARGO)
15% /20%

Why choose LK50e?

Operator to be closed
cab

Provides safe work in different weather conditions, protects the operator from wind, dust and precipitation, and provides a comfortable working environment and good visibility.

Electric fork positioning

An electronically adjustable fork position ensures accurate and rapid adjustment of the load from the operator's cabin, reducing manual operation.

Lithium battery with integrated heating system

A state-of-the-art Li-ion battery with built-in heating also guarantees stable performance at low temperatures, ensuring continuous operation under different operating conditions.

Multifunction smart LCD display

A state-of-the-art LCD display provides real-time information on essential operating parameters, providing easy control and monitoring.
