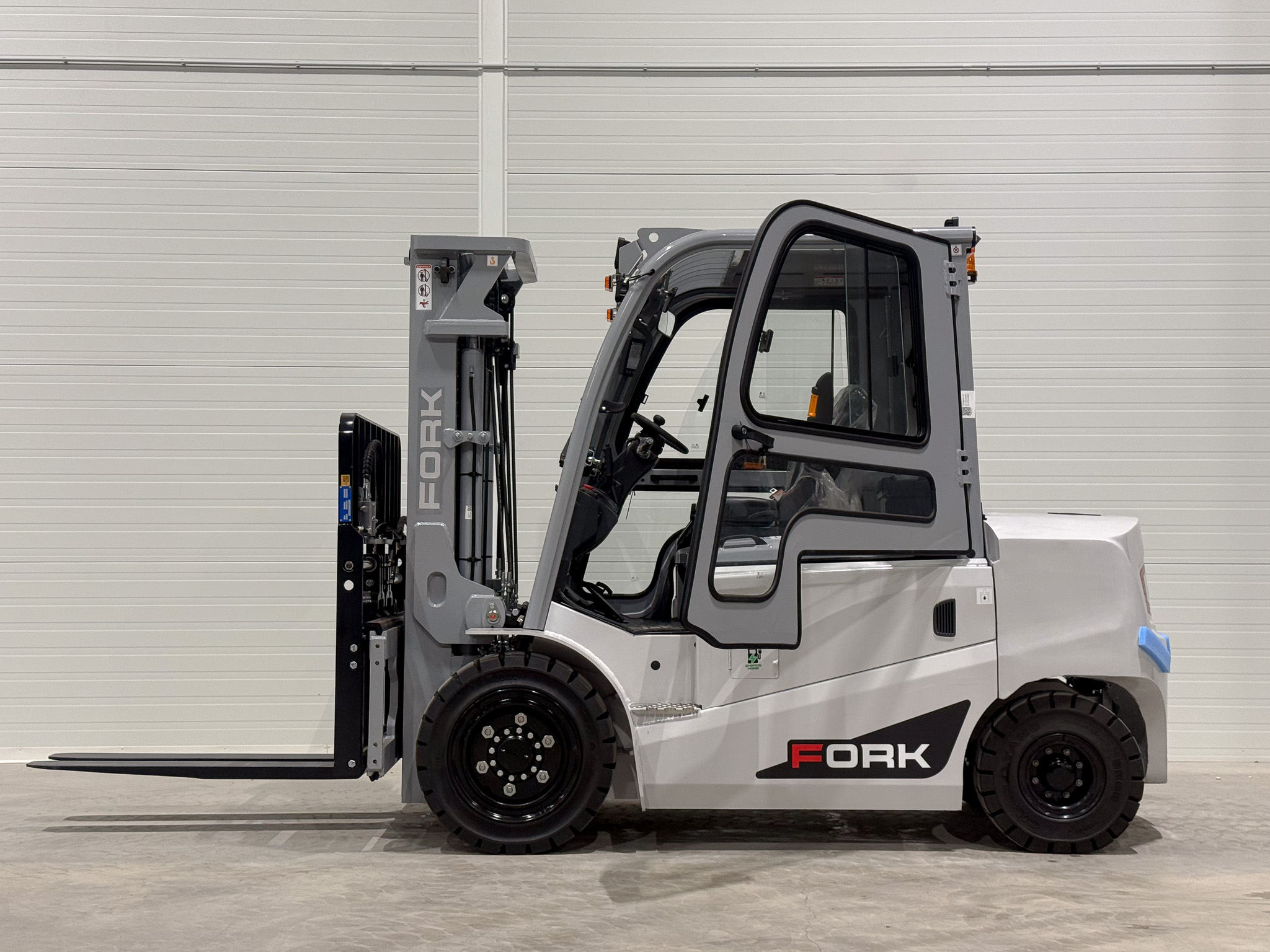

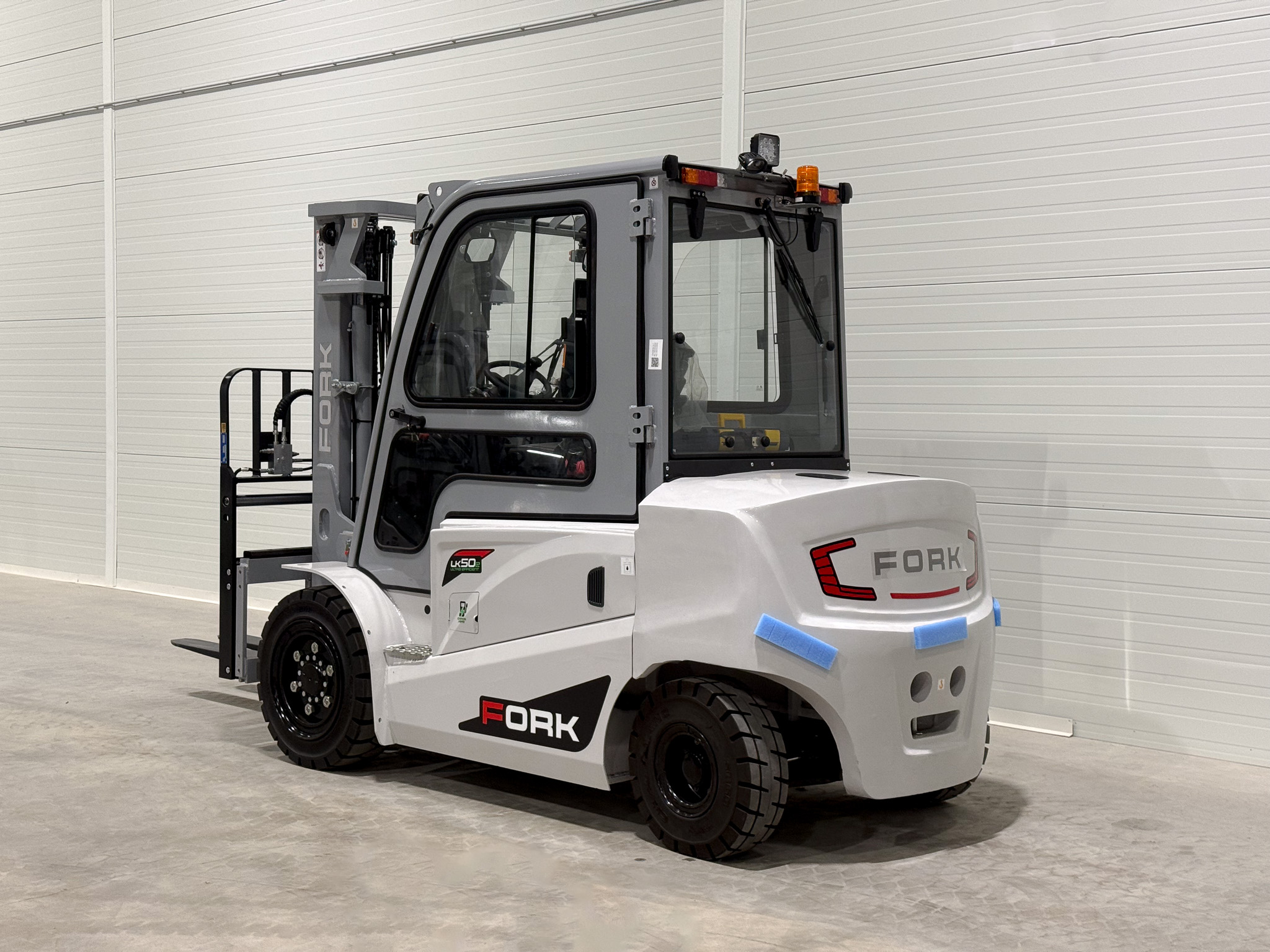

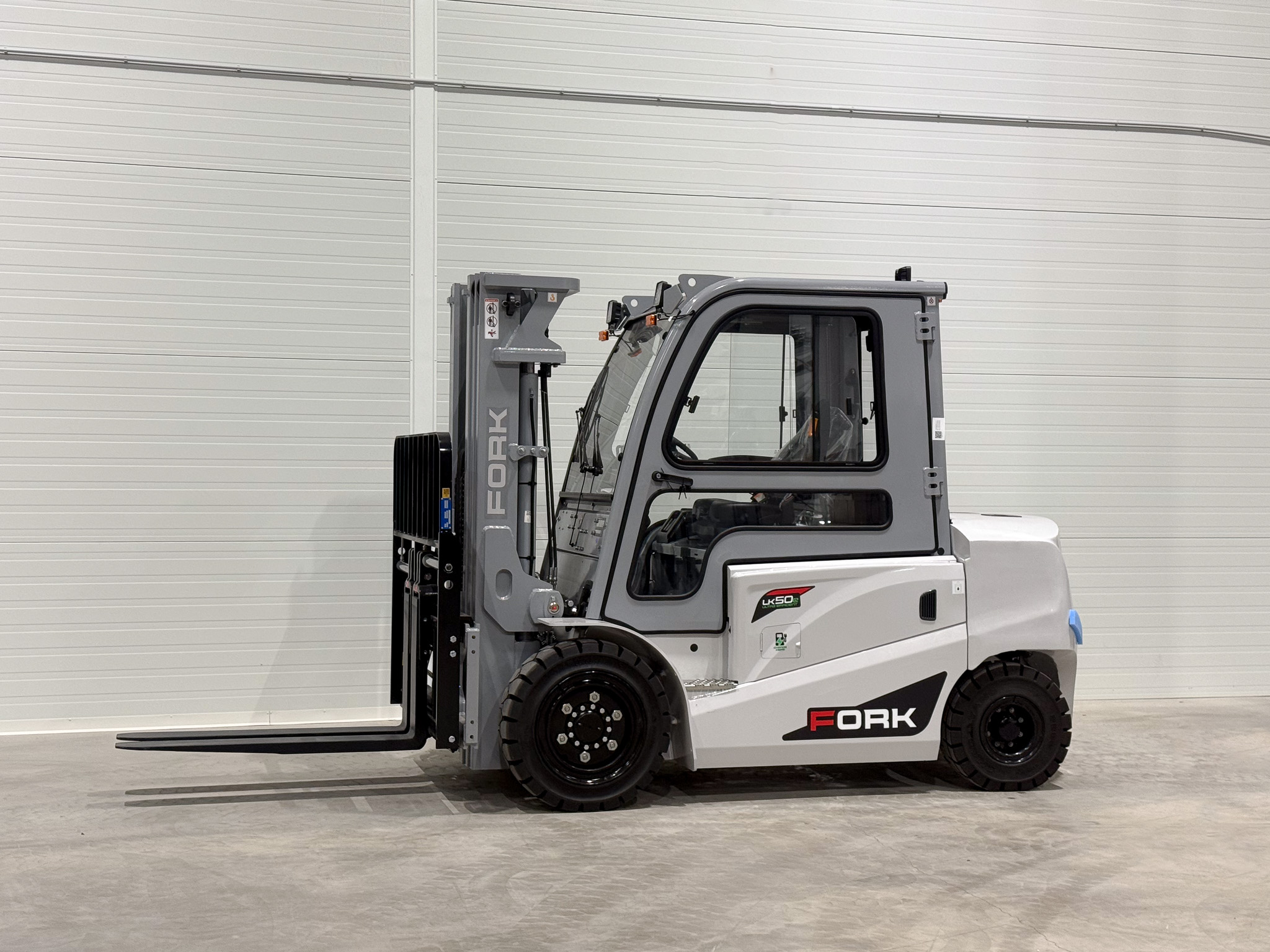

Electric forklift LK50e-45 with cab

Battery type:

Li-Ion

Battery voltage/capacity:

80/412 V/Ah

Capacity:

5000 kg

Centre of gravity distance:

500 mm

Charger:

80/200 V/A

Clearance under mast (laden):

135 mm

Engine power:

20 kW

Engine type:

Electric

Fork length:

1070 mm

Fork width:

150 mm

Free lift height:

1182 mm

Ground clearance at the centre of the wheelbase:

165 mm

Lifting height:

4500 mm

Mast extend height:

5608 mm

Mast lower height:

2260 mm

Mast tilt angle:

6 °/6 °

Mast type:

Three-stage telescopic mast with free lift function (Triplex, FFL)

Overall length:

4110 mm

Overall width:

1500 mm

Top speed:

15 km/h

Turning radius:

2690 mm

Weight:

6950 kg

Wheel material:

Full rubber

FORK LK series electric loaders

A modern and energy efficient choice for moving and lifting different loads, providing an environmentally friendly alternative to traditional internal combustion engine models. Their powerful lithium-ion batteries provide fast charging, long life and less maintenance, so electric loaders are especially practical for intensive use.

Since these loaders do not produce exhaust gases, they are also safe to use indoors. In addition, electric loaders operate very quietly, which contributes to a better working environment and reduces noise levels in the area. LK series loaders provide excellent manoeuvrability and accuracy, making them suitable for narrow aisles in warehouses or small work areas.

Specifications

  • Load capacity: 5000 kg
  • Fork positioning: Electric
  • Battery: 80V / 412Ah Li-ion
  • Overcoming slope (with/without cargo): 15% / 20%

Why choose LK50e?

  • Closed operator cabin
    Provides safe work in different weather conditions, protects the operator from wind, dust and precipitation, and ensures a comfortable working environment with good visibility.
  • Electric fork positioning
    Allows accurate and rapid adjustment of the load directly from the operator’s cabin, reducing manual effort.
  • Lithium battery with integrated heating system
    Ensures stable performance at low temperatures and continuous operation in various conditions.
  • Multifunction smart LCD display
    Provides real-time information on essential operating parameters for easy control and monitoring.
