Stackers

FORK Electric stacker with platform EG-N16-53P

Battery type:

Lead-acids

Battery voltage/capacity:

24/240 V/Ah

Capacity:

1600 kg

Engine power:

1.4 kW

Fork length:

1150 mm

Free lift height:

1756 mm

Lifting height:

5330 mm

Mast extend height:

5780 mm

Mast lower height:

2343 mm

Min lifting height:

90 mm

Overall length:

1756 mm

Overall width:

790 mm

Top speed:

7 km/h

Turning radius:

1420 mm

Weight:

1380 kg

Wheel material:

PU

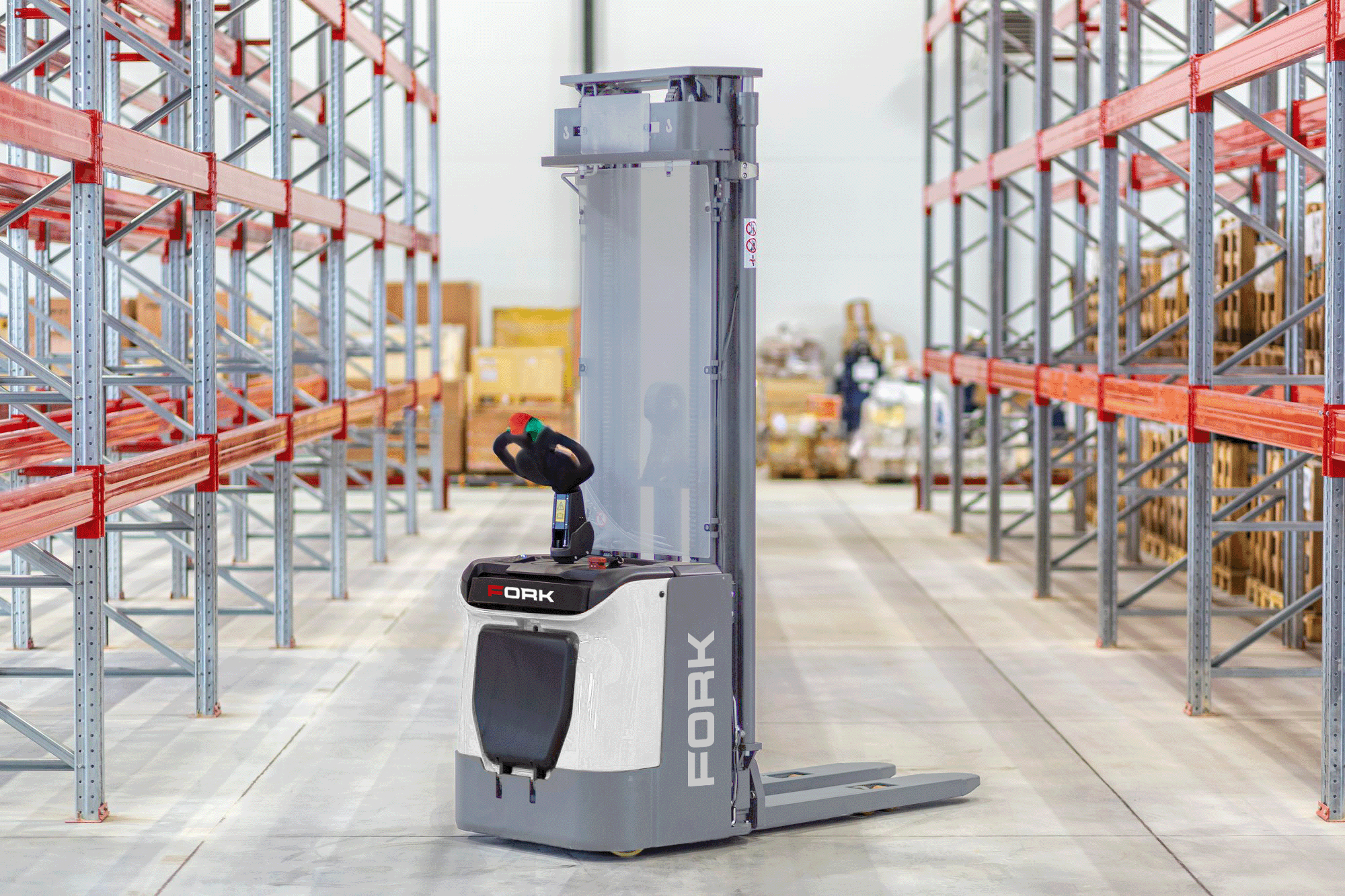

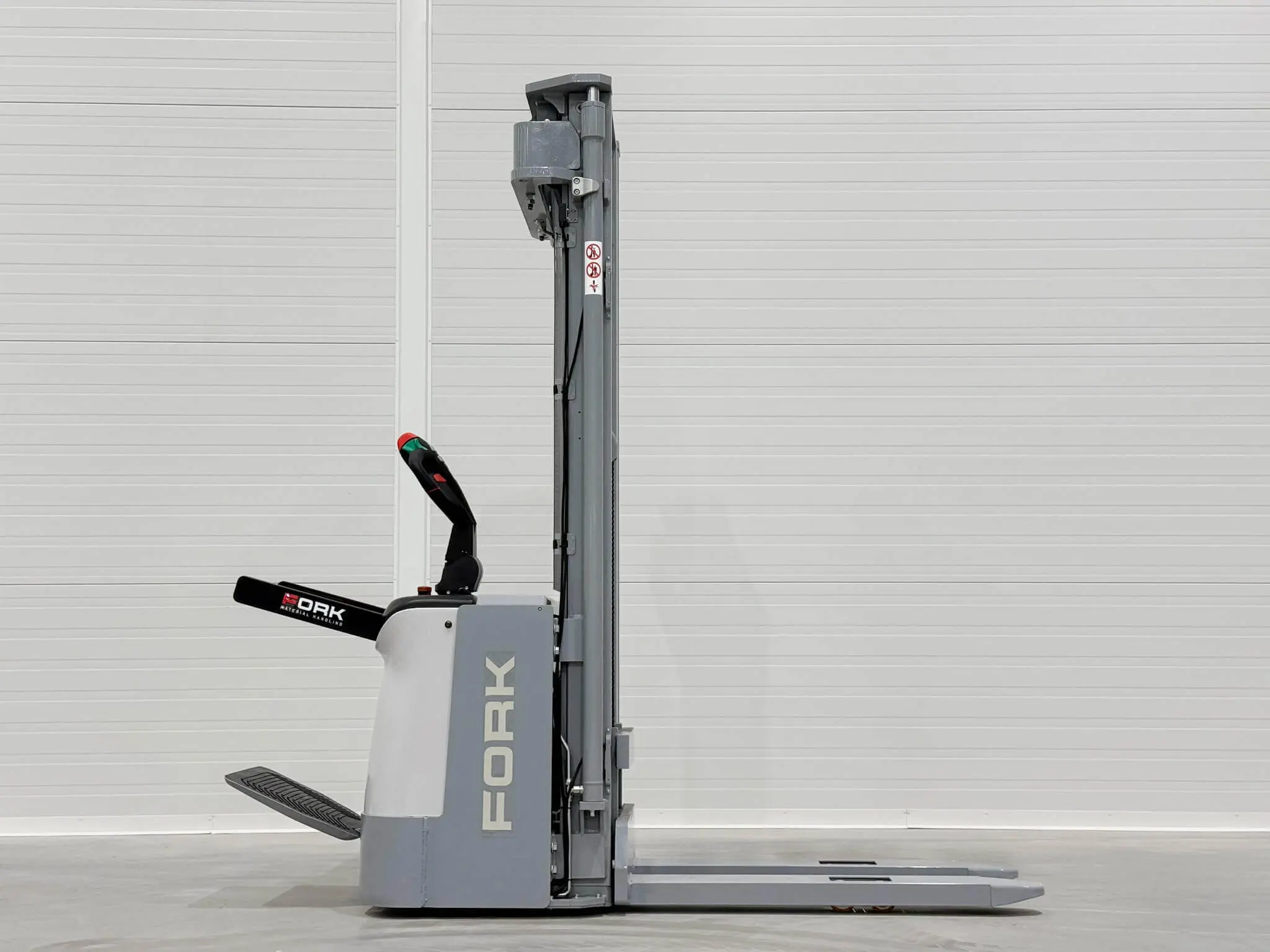

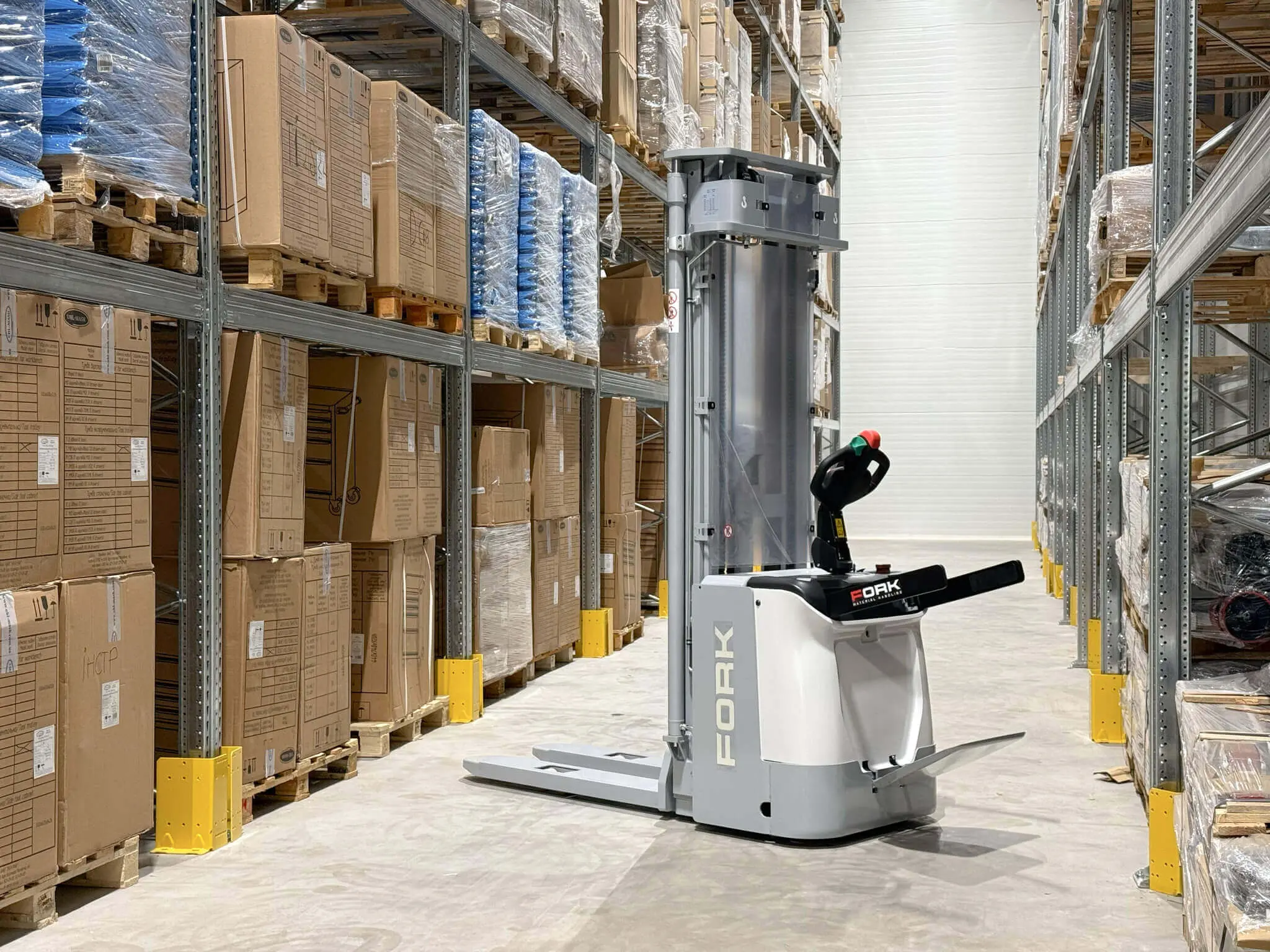

FORK electric stackers with platform

Electric stackers are designed for efficient warehouse operations where quick movement of goods and precise handling are essential. They significantly reduce operator strain, while the integrated platform allows the operator to travel with the machine, making long-distance movement in warehouses and logistics centres easier and more efficient.

Key features

  • Electric proportional movement for smooth and precise control
  • Optimized maintenance design for reduced downtime
  • Stable AC drive motor ensuring reliable performance
  • Reinforced protective structure for improved durability
  • Designed for industrial warehouse use

Why choose this model

  • Operator platform for efficient long-distance movement
  • Compact design for warehouse maneuverability
  • Strong lifting system for demanding daily operations
  • Reliable construction for continuous industrial use
